1GLOBAL IoT SIM and eSIM Technologies

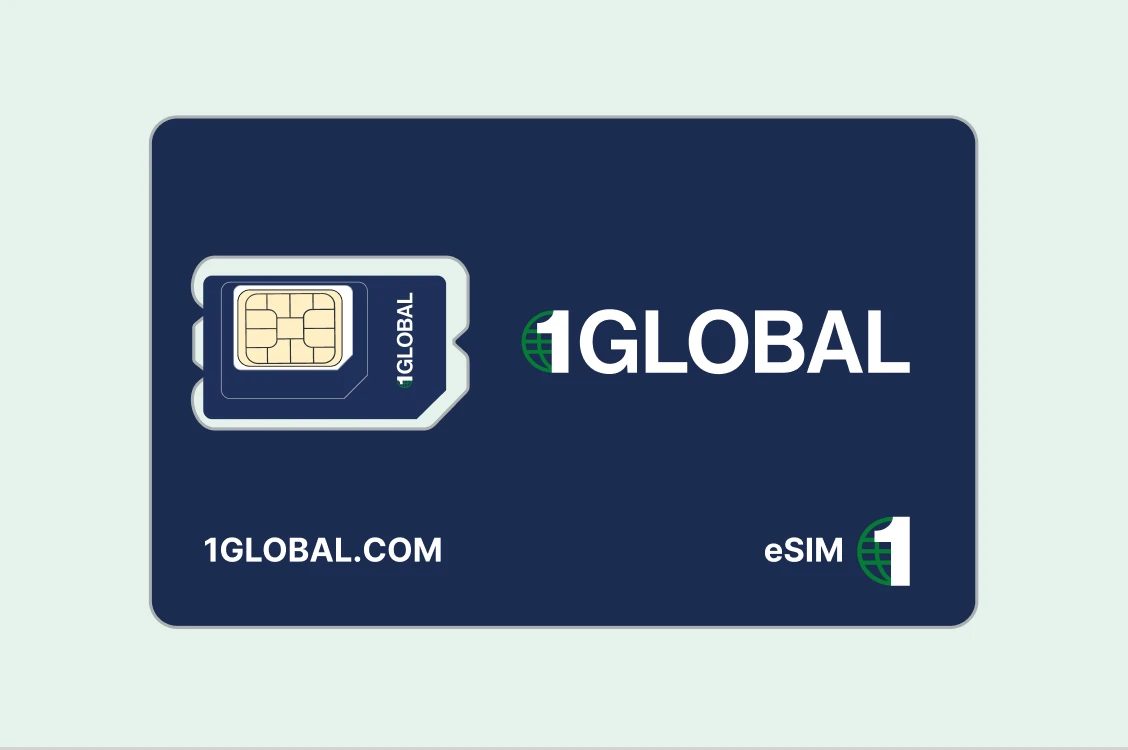

The 3-in-1 IoT SIM card is trusted technology for low-cost and retrofit projects. It splits into 2FF, 3FF and 4FF sizes to fit standard SIM slots. And as it supports eSIM technology, it's not locked to a single operator.

• Plastic IoT SIM cards in all form factors:

  Mini: 15 x 25mm

  Micro: 12 x 15mm

  Nano: 8.8 x 12.3mm

• 2G, 3G, 4G/LTE and LTE-M

• Operating temperature: -25°C to ~+85°C

• Read/write cycles: min. 500,000

• Supply voltage: 1.62 to 3.3V

• Data retention: 10 years

Minimised battery consumption and lower overall costs are just some of the benefits of low-power IoT SIM cards. Includes Power Saving Mode (PSM), Extended Discontinuous Reception (eDRX), Wake Up Signals (WUS) and high-power classes.

Embedded IoT SIMs provide all the benefits of industrial SIMs, but they are secured physically to devices. Highly resistant to physical demands and a fraction of the size of a removable SIM, they support eSIM technology as standard so are not locked to a single operator.

• Size: 6 x 5 x 0.85mm

• Endurance rating: 8 to 16 million cycles

• Additional resistance against vibrations, moisture, corrosion, pressure and salt mist

• Operating temperature: -40° to +105°C

• Supply voltage 1.62V to 5.5V

• 320KB memory

• Data retention: 10 years @ 105°C, 15 years @ 85°C

Minimised battery consumption and lower overall costs are just some of the benefits of low-power IoT /M2M SIM cards. Includes Power Saving Mode (PSM), Extended Discontinuous Reception (eDRX), Wake Up Signals (WUS) and high-power classes.
